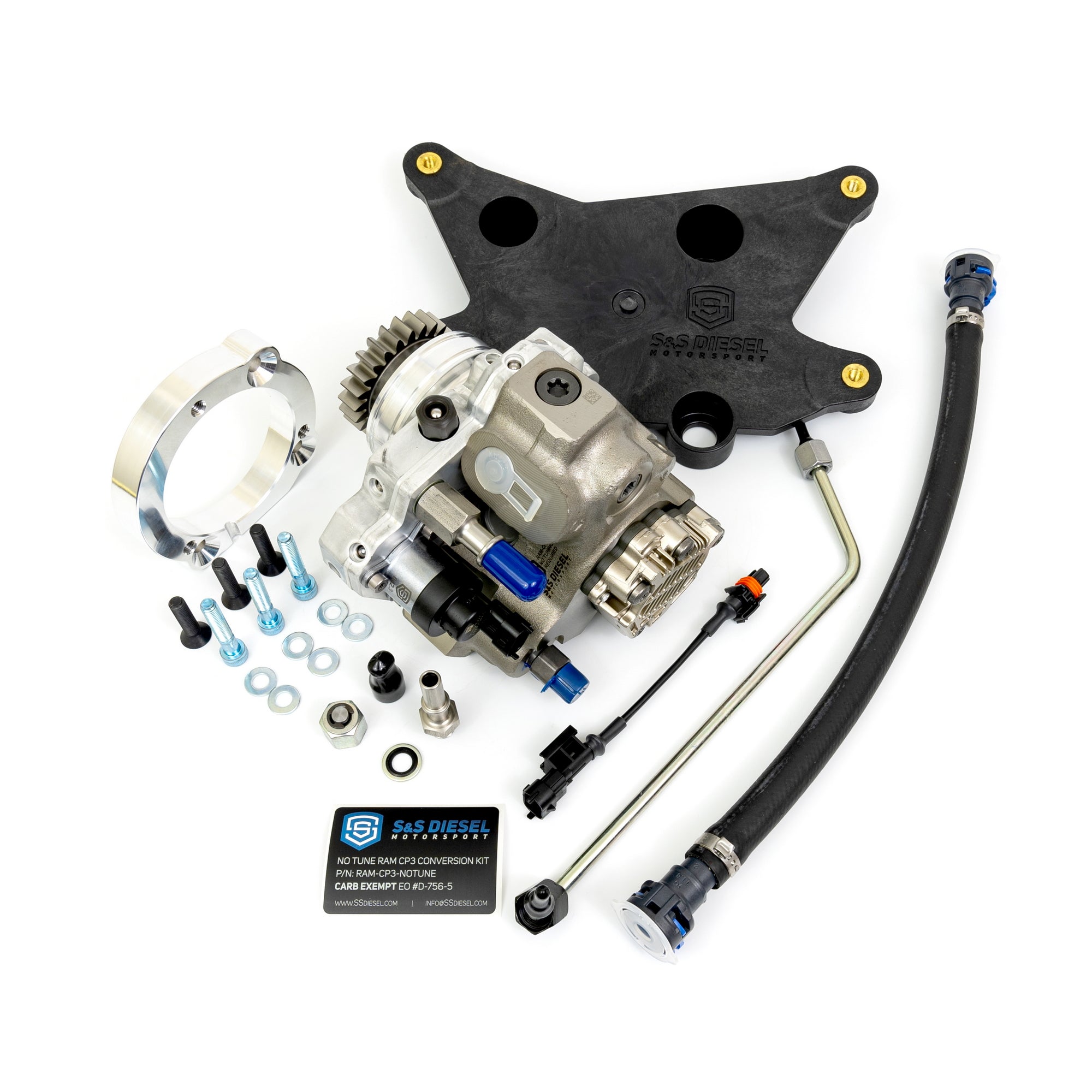

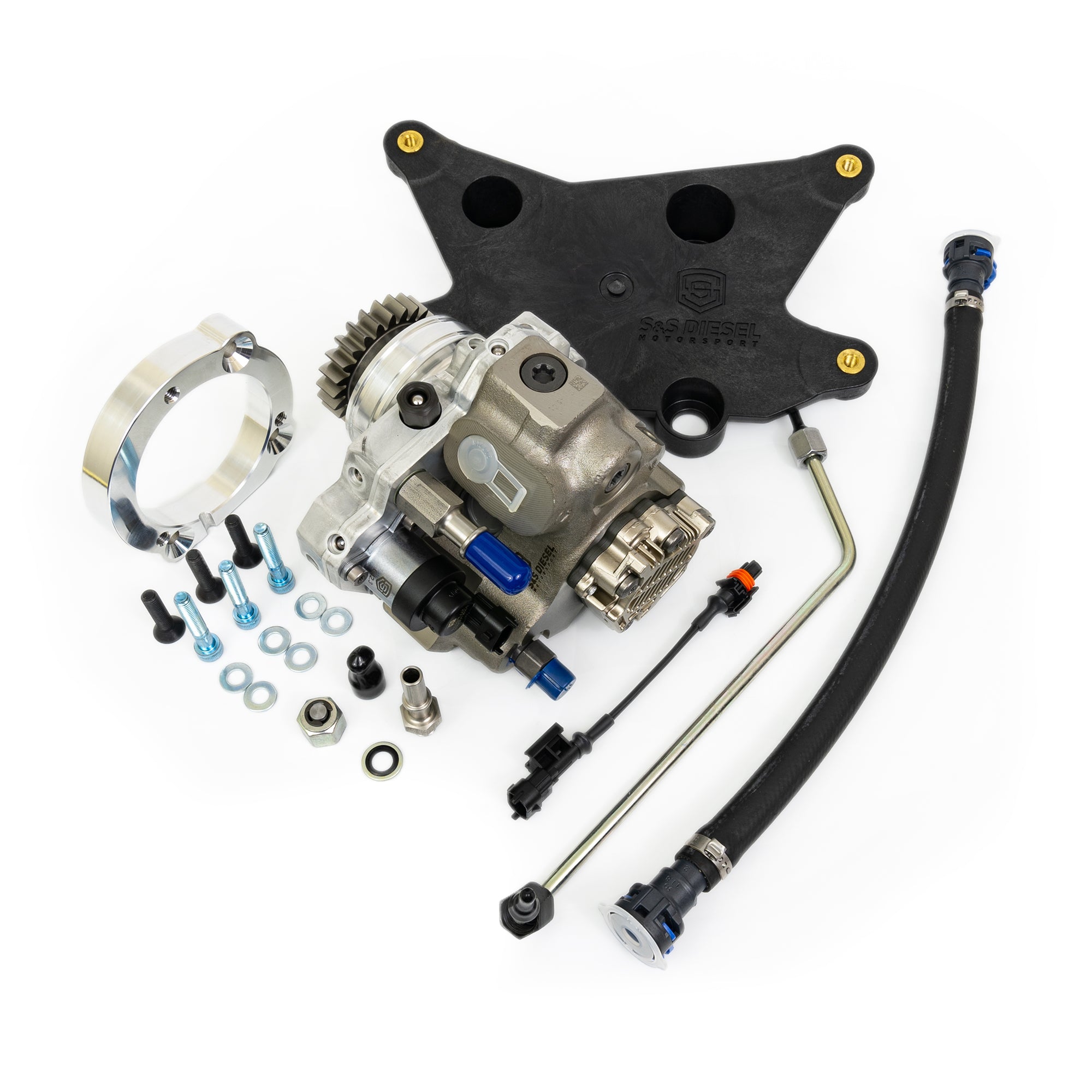

S&S DIESEL (2019-2020) CUMMINS CP3 CONVERSION KIT (INCLUDES PUMP)
S&S No Tuning Required RAM CP3 Conversion Kit
• No calibration needed
• Direct drop in for 2019-2020 RAM with Cummins
• CARB-compliant EO #D-756-5
• Improved durability over stock CP4.2
• OE-quality injection molded ECU mount
• OE-style quick-connect fittings and braided supply line
• Autofrettaged high-pressure fuel line
• Brand new latest generation Bosch CP3NH base
• Proprietary drive gear and pilot preinstalled on CP3
Pump Speed Limits
10mm High Speed – 8,000 pump RPM | 5,333 engine RPM
12mm High Speed – 7,000 pump RPM | 4,667 engine RPM
The install kit can be sold separately for those who already have CP3 pumps, with the understanding that it will work best with S&S high speed pumps. Other CP3 pumps may not be optimized for high speed operation and output could flatline past 3,500 pump RPM.
